SYMB15 Flat-Type Tensioning End Anchorage

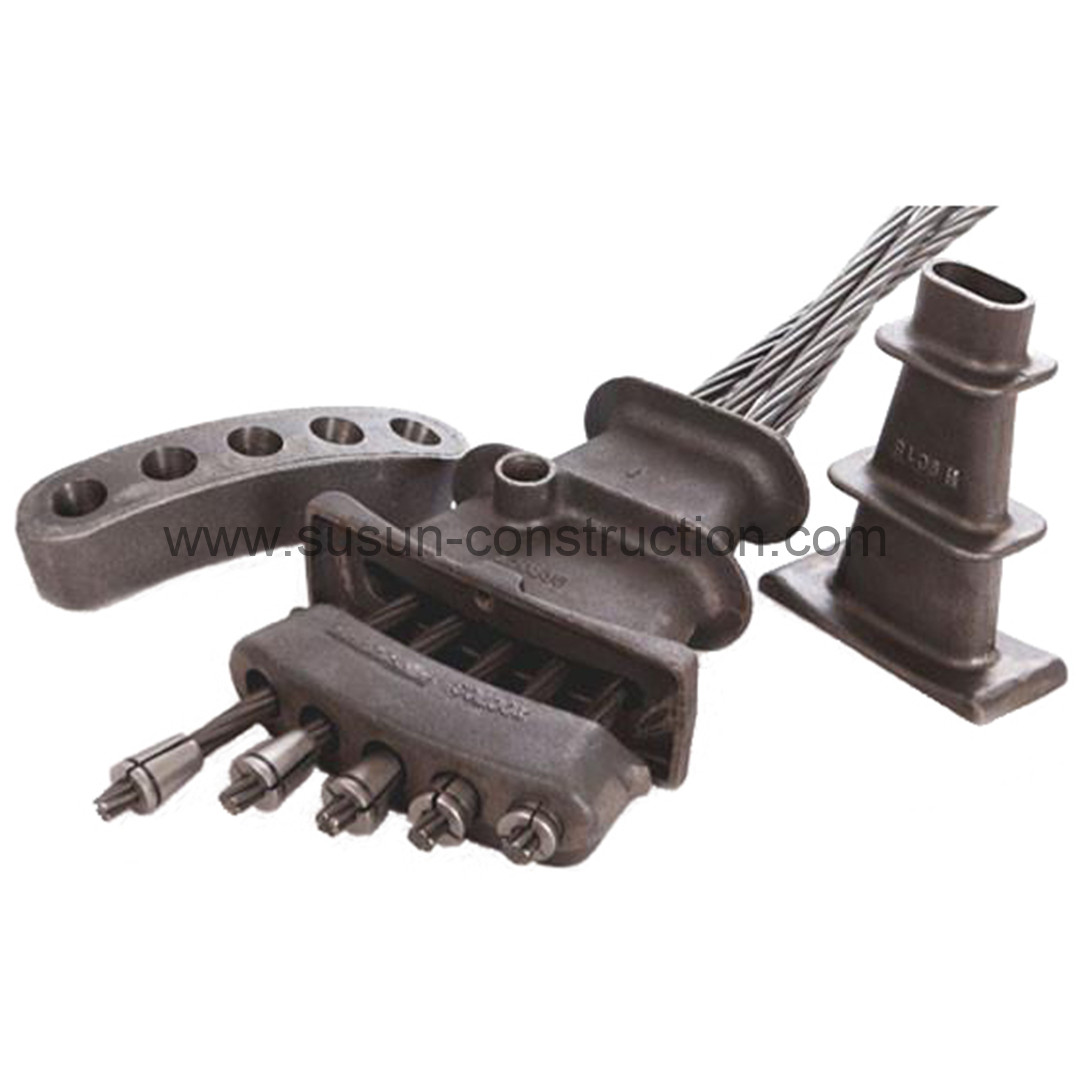

The anchorage is mainly intended for post-tensioning hollow plate beam or thin concrete structure. It consist of a wedge, flat-type anchor bead, flat-type bearing plate and flat type spiral reinforcement etc ..
Composition diagram of SYMB15 series flat-type anchorage
Dimension table of SYMB15 series flat-type anchorage
|
Type |
Flat-type anchor head |
Bearing plate |
Duct internal diameter |
Spiral reinforcement |
|||||||
|
A |
B |
C |
D |
E |
L |
H |
K |
F |
G |
J |
|
|
SYMB15-2 |
80 |
45 |
50 |
145 |
70 |
140 |
50 |
19 |
130 |
65 |
200 |
|
SYMB15-3 |
115 |
45 |
50 |
180 |
75 |
160 |
60 |
19 |
180 |
65 |
200 |
|
SYMB15-4 |
150 |
45 |
50 |
220 |
85 |
230 |
70 |
19 |
220 |
65 |
250 |
|
SYMB15-5 |
185 |
45 |
50 |
270 |
85 |
260 |
90 |
19 |
250 |
65 |
250 |
